VIPET-LED

IP66
VIPET-LED

Linear luminaire designed for demanding industrial environments. The body is made of robust polycarbonate (RAL 7035). The housing is made of highly resistant opal polycarbonate guaranteeing excellent homogeneity of illumination and glare reduction. Equipped with certified electronic components guaranteeing high efficiency up to 133 lm/W and a lifetime of 100,000 h even at high temperatures. It features IP66 splash and dust resistance. Suitable for ambient temperatures from -20 °C to +35 °C. Supplied with plastic or stainless steel clips and mounting retaining pens. Designed for snap-on and hanging mounting.

Dimensional diagram
Download the family catalogue sheet
Specifications
Parameters

Driver:
220-240 V/50-60 Hz AC, 220-240 V DC

Source:
LED, 4000K, CRI +80, MacAdam3

Housing:
Plastic material PC (polycarbonate), colour grey RAL 7035

Cover:
PC (polycarbonate) opal

Fastening:
Direct fixing to the ceiling or wall of the illuminated space by means of two self-locking fixing pens (standard equipment), self-locking cable suspension on two fixing pens, cable suspension by means of suspension lugs.

Connection:
Screwless three-pole terminal block, max. wire cross-section 2.5 mm2.

Standard equipment:
Pg13,5 gland for cable diameter 7-12 mm and fixing pens for direct fixing of the luminaire to the mounting surface.

Calculated lifetime - LED modules:
L80B10 Ta 30 - 70 000 h,
L70B10 Ta 30 - 100 000 h.

On order

3000K/4000K/5000K/6500K - colour temperature
MULTI - permanent emergency lighting (1h, 3h)
EM - temporary emergency lighting (1h, 3h)
DIM - dimmable electronic ballast (DALI, DSI, 1-10V)
1/3F - single-phase or three-phase connection, max. conductor cross-section 2.5 mm2
ADELS - possibility to equip the luminaires with a connector terminal block
GESIS - possibility to equip the luminaires with connectors
RN - luminaire suitable for outdoor open areas
NSP - stainless steel clasp
NUP - stainless steel gripping pen
NSPP - stainless steel clasp and gripping pen

Configuration

Luminaire wattage (W)

17
26
35
52

Length of the housing

1290
1590

Luminous flux (lm)

2265
3398
4531
6797
Product variants
VIPET-LED-2500-136-4K, IP66

Product type: 053180  Item number: 36920

Luminous flux (lm):

2265

Power input(W):

17

Tc (K):

4000

Ta (°C):

-20°C≤ta≤35°C

Housing:

PC

Cover:

PC opal

Length A (mm):

1290

Width B (mm):

132

C (mm):

110

Fastening:

surface/suspended

CRI:

≥80

Control method:

ON/OFF

Beam angle:

Very wide beam >80°

Weight (kg):

1,42

Detail of the variant
VIPET-LED-5000-136-4K, IP66

Product type: 053181  Item number: 36921

Luminous flux (lm):

4531

Power input(W):

35

Tc (K):

4000

Ta (°C):

-20°C≤ta≤35°C

Housing:

PC

Cover:

PC opal

Length A (mm):

1290

Width B (mm):

132

C (mm):

110

Fastening:

surface/suspended

CRI:

≥80

Control method:

ON/OFF

Beam angle:

Very wide beam >80°

Weight (kg):

2,1

Detail of the variant
VIPET-LED-3750-158-4K, IP66

Product type: 053182  Item number: 36922

Luminous flux (lm):

3398

Power input(W):

26

Tc (K):

4000

Ta (°C):

-20°C≤ta≤35°C

Housing:

PC

Cover:

PC opal

Length A (mm):

1590

Width B (mm):

132

C (mm):

110

Fastening:

surface/suspended

CRI:

≥80

Control method:

ON/OFF

Beam angle:

Very wide beam >80°

Weight (kg):

2,54

Detail of the variant
VIPET-LED-7500-158-4K, IP66

Product type: 053183  Item number: 36923

Luminous flux (lm):

6797

Power input(W):

52

Tc (K):

4000

Ta (°C):

-20°C≤ta≤35°C

Housing:

PC

Cover:

PC opal

Length A (mm):

1590

Width B (mm):

132

C (mm):

110

Fastening:

surface/suspended

CRI:

≥80

Control method:

ON/OFF

Beam angle:

Very wide beam >80°

Weight (kg):

2

Detail of the variant
Accessories
Gripping pen VIPET 1x stainless steel AISI 304

Item number: 712

Stainless steel clasp VIPET, POINTER

Item number: 1706

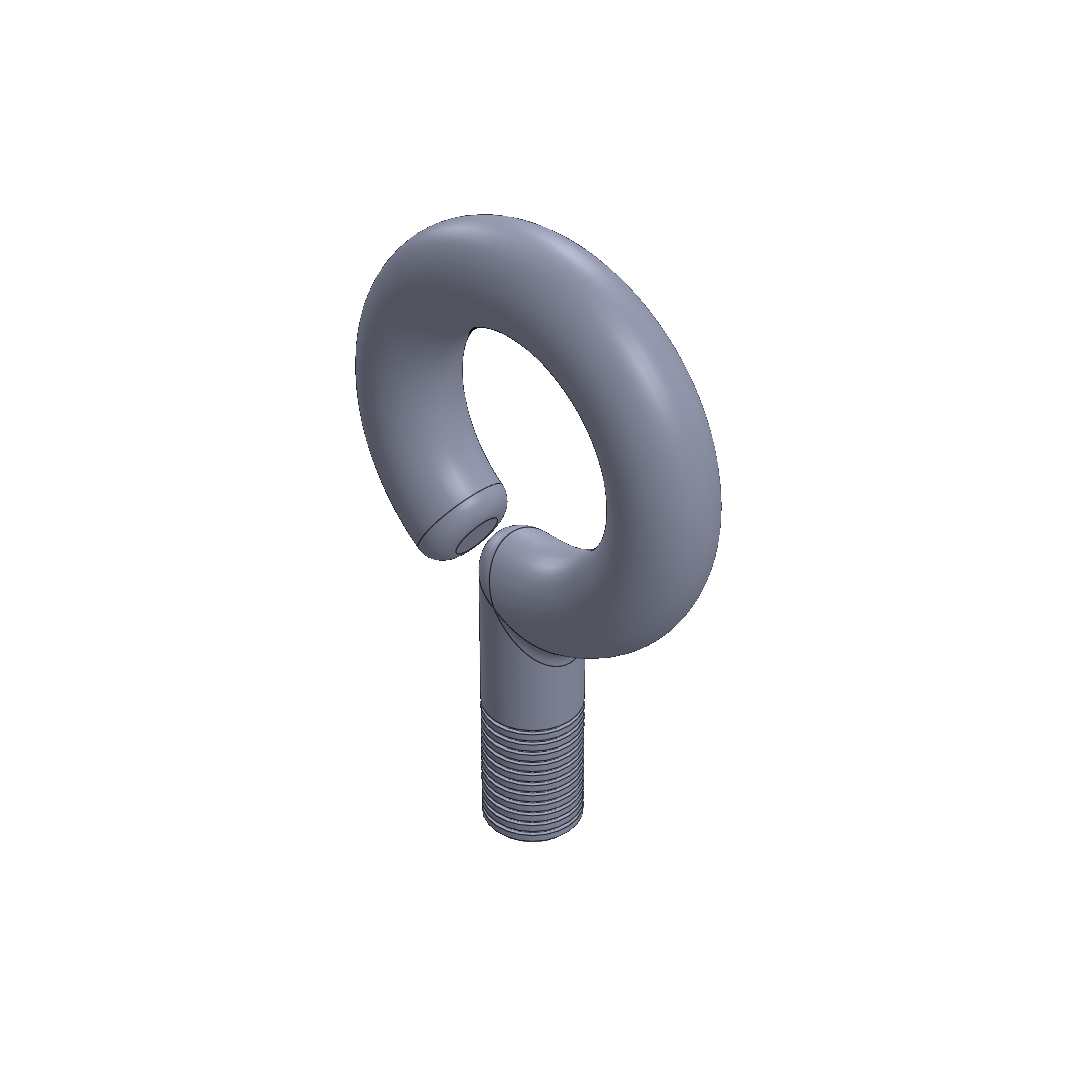

Hanging eye complete

Item number: 3550

Cable suspension EUROPA / EXTRA / VIPET 3 m ( 2 pcs)

Item number: 3575

VIPET 1x18W protective basket

Item number: 20038

VIPET 1x36W protective basket

Item number: 20039

Protective basket VIPET 1x58W

Item number: 20040

Downloads

Catalogue sheet

Declaration of conformity EU

Installation instructions

LDT, IES

EAC

Tender Text
VIPET-LED

Linear luminaire designed for demanding industrial environments. The body is made of robust polycarbonate (RAL 7035). The housing is made of highly resistant opal polycarbonate guaranteeing excellent homogeneity of illumination and glare reduction. Equipped with certified electronic components guaranteeing high efficiency up to 133 lm/W and a lifetime of 100,000 h even at high temperatures. It features IP66 splash and dust resistance. Suitable for ambient temperatures from -20 °C to +35 °C. Supplied with plastic or stainless steel clips and mounting retaining pens. Designed for snap-on and hanging mounting.

Parameters

Driver: 220-240 V/50-60 Hz AC, 220-240 V DC; Source: LED, 4000K, CRI +80, MacAdam3; Body: Plastic material PC (polycarbonate), colour RAL 7035 grey; Cover: ; PC (polycarbonate) opal; Mounting: Direct fixing to ceiling or wall of illuminated space by means of two self-locking fixing pens (standard equipment), self-locking cable suspension by means of two fixing pens, cable suspension by means of hanging lugs; Connection: screwless three-pole terminal block, max. wire cross-section 2.5 mm2.; Standard equipment: gland Pg13,5 for cable diameter 7-12 mm and fixing pens for direct fixing of the luminaire on the mounting surface; Calculated lifetime - LED modules: L80B10 Ta 30 - 70 000 h,L70B10 Ta 30 - 100 000 h.

×
